l Usable as a modulator driver
l Supports full waveform driving
l Ultra-wide analog operating frequency up to 30KHz~18GHz
l Adjustable output voltage amplitude with a range of 2~10Vpp
l Ultra-fast response speed with a typical rise time of 20ps
l Excellent EMC/EMI design
l Supports aerospace-grade design (optional, for LEO/MEO/GEO applications)
l Modulator driving
l RF amplification
l Test and measurement
l High-speed synchronization systems
l Pulse generators
l Spectroscopy
l Lidar

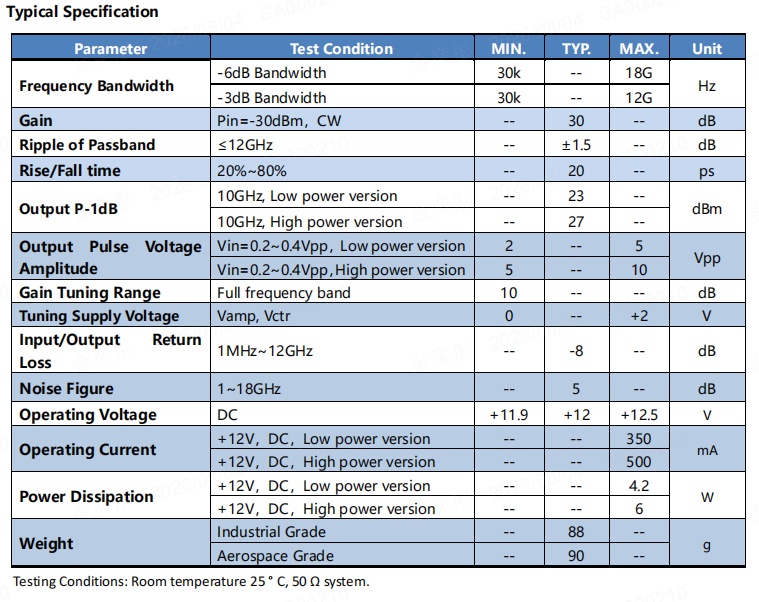

Parameter | Test Condition | Min | Typ. | Max | Unit |
Operating Frequency Range
| - | 30k | - | 18G | Hz |
Gain | Pin=-30dBm, CW | - | 30 | - | dB |
Gain Flatness | ≤18GHz | - | ±1.5 | - | dB |
Rise/Fall Time | 20%~80% | - | 20 | - | ps |
Output 1dB Compression Point
| 10GHz, CW, Low Power Version | - | 23 | - | dBm |
10GHz, CW, High Power Version | - | 27 | - | dBm | |
Output Pulse Voltage Amplitude
| Vin=0.2~0.4Vpp, Low Power Version | 2 | - | 5 | Vpp |
Vin=0.2~0.4Vpp, High Power Version | 5 | - | 10 | Vpp | |
Gain Tuning Range | 30kHz~18GHz | 10 | - | - | dB |
Tuning Supply Voltage | Vamp, Vctr | 0 | - | 2 | V |
Input/Output Return Loss | ≤18GHz | - | -10 | - | dB |
Operating Voltage | DC | +11.8 | +12 | +12.5 | V |
Operating Current
| +12V, DC, Low Power Version | - | - | 350 | mA |
+12V, DC, High Power Version | - | - | 500 | mA | |
Power Dissipation
| +12V, DC, Low Power Version | - | - | 4.2 | W |
+12V, DC, High Power Version | - | - | 6 | W | |
Weight | Industrial Grade | - | 88 | - | g |
Aerospace Grade | - | 92 | - | g |
